Introduction to Containers and Common Bioinformatic Tools

Key Points

Dockerhub and Quay.io, using containers to run programs, and learning basic tools

Content developed by Logan Fink

Module Objectives

  • Trainees will learn what containers are and how they differ from other virtual environments
  • Trainees will understand the flags to remove a container, mount a volume, and define usergroups for a docker container
  • Trainees will learn how to ensure that data persists on their system after a container is run and removed
  • Trainees will be able to identify the differences between container software providers and select an appropriate system for use within their laboratory

Virtualization

Containerization is a way to allocate resources on a system in a very compartmentalized way

  • Virtual machines
    • Hypervisor
    • Maintaining an environment that partitions a host machine
  • Containers
    • Individual software
    • Dependencies included
    • Reproducible environment
    • “Works on my machine”

Containerization Software

Different containerization software exists to run containers

  • Docker
  • Apptainer (Formerly Singularity)
  • ECR
  • Podman

There are advantages and disadvantages to each

Root Privileges

Running Docker requires root access Depending on the IT restrictions available at your site, access to certain container software may be limited Root privileges are not required by Apptainer, and Podman

User Groups

-u $(id -u):$(id -g)

By default, when Docker containers are run, they are run as the root user. To ensure files can be accessed, read and written to by the local user and machine and not just root, the -u flag sets the container’s user and group based on the user and group from the local machine, resulting in the correct file ownership.

Volumes

-v $PWD:/data

By default, containers are isolated environments. When a container is removed, so is the data inside it, unless the user ensured continued access. If the data is exported to std out, it will remain there, but the data can also be captured in a volume which is mounted from the home system ($PWD, current working directory) onto the container (/data, a folder within the container). Data which is generated in or moved to the volume will persist on the host system even after the container has been deleted.

Running Containers

Containers can be run in interactive mode

  • The flag for this is: -it
    • The i stands for interactive
    • The t stands for a pseudo TTY, that offers basic input/output Containers can be called and given a specific command to run Removal of containers that are no longer running saves space your system, but persistent containers can be called and used again, and any changes that were made during that session will remain

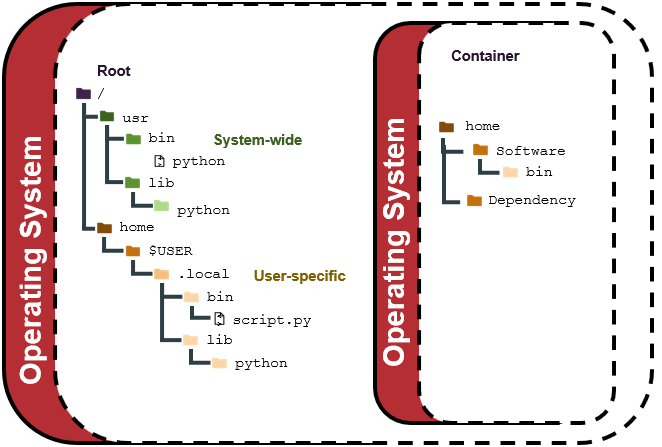

OS Differences

Containerization allows users to specify whatever operating system they would like to use within the container, whether that matches the host system or not

Presentation9 Img01

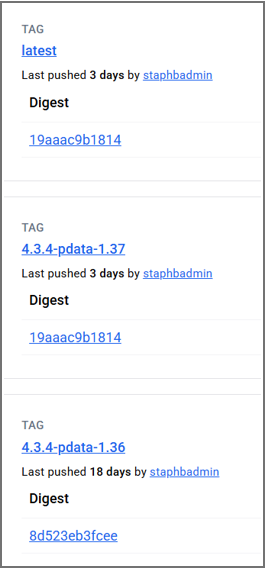

Container Versioning

  • Versions are specified in container naming/tags as a convention for noting which version of a software is in that container
  • “Latest” tag is less useful than more specific semantic versioning of a container, i.e. 1.1.0 since this will be more easily trackable and revertable (“latest” must be assigned, and authors do not always keep track or update the latest track, which can lead to problems downstream)

Presentation9 Img02

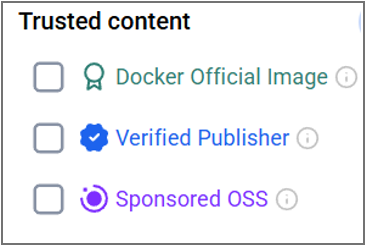

Repositories

It is important to use trusted sources of containers - Reputable institutions (StaPH-B, etc.)

Presentation9 Img03

Common Bioinformatic Tools

Bcl2fastq, Dorado

Bcl2fasta

  • Illumina software for creating fastq files from bcl files (clustering photos to sequence)
  • Demultiplexing

Dorado

  • Software for basecalling ONT reads from fast5 files
  • Demultiplexing, alignment, trimming, correction, polishing

FastQC, MultiQC, and Nanoplot

  • Quality control softwares that allow for viewing of sequencing data associated with sample quality
  • Aggregate Q scores across reads
  • Expected distribution of bases, visualizing adapter removal
  • Visual representations of sequencing quality

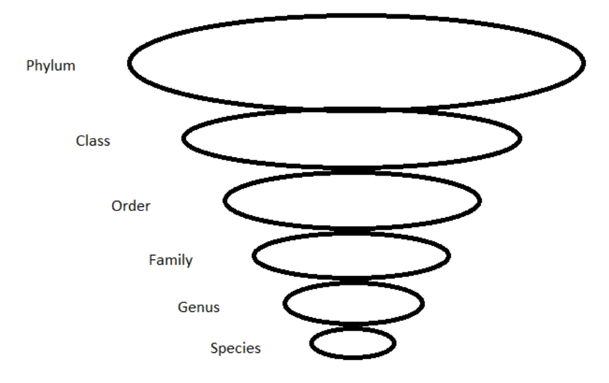

Kraken2

  • Used for classifying reads to the most specific level of certainty within a taxonomic ranking scheme
  • Dependent on a database

Presentation9 Img04

SRA-ToolKit

  • Tools and libraries for using data in the INSDC Sequence Read Archives (SRA)
  • Allows for downloading of NCBI data easily using command line
  • SRA Accession numbers can be used to download data
    • Basic commands
    • prefetch
    • Fasterq-dump

Samtools

  • A set of tools for analyzing and working with sequencing data
  • Samtools
    • Reading, writing, indexing, viewing, editing and working with files in SAM, BAM, CRAM format
  • BCFTools
    • Reading, writing, BCF2, VCF, gVCF files for filtering and calling SNPs and short indels
  • HTSlib
    • A C library for reading and writing high-throughput sequencing data

Nexstrain

  • A set of tools to create phylogenies and visualize genomic sequencing data
  • Augur
    • Filter, align, tree build, refine, export
  • Auspice
    • Visualization program for viewing trees and metadata overlays
  • Can build a visualization with in- house data or use a preconfigured build

Nextflow

  • Software for running containers in orchestrated ways, developing pipelines that optimize parallelization and create faster and reproducible ways to generate data
  • Modular for ease of updating and changing
  • Workflow tracking for troubleshooting and quality assurance
  • Configurability
    • Config files for pipeline variable maintenance
  • There exists a set of best-practice values for coding with, using, and contributing to nextflow called nf-core

Docker, Apptainer, Podman

  • Softwares that run Docker containers
  • Based on the security restrictions, one container may be a better fit for a user’s organization

Installing software

Use the command below to create a new environment with micromamba and install the software that will be used in future lessions.

# Create environment (bioconda + conda-forge channels)
micromamba create -n flu_env \
  -c bioconda \
  -c conda-forge \
  -c defaults \
  sra-tools samtools nextflow \
  --yes

# Activate
micromamba activate flu_env

Go to this link for Nextstrain installation.
