Deploy the Data Ingestion service for NBS 7

This page walks through deploying the Data Ingestion service, including database setup and Helm chart installation.

Before you begin

The DataIngestion service utilizes three databases: NBS_Msgoute, NBS_ODSE and NBS_DataIngest. NBS_DataIngest is a new database essential for ingesting, validating Electronic Lab Reports (ELR), converting them into XML payloads, and integrating these XMLs into the NBS_MSGOUT database. It must be created before deploying the app on the EKS cluster.

Create the NBS_DataIngest database

Run the following SQL scripts before deploying the Data Ingestion service.

Create the database:

IF NOT EXISTS(SELECT * FROM sys.databases WHERE name = 'NBS_DataIngest')
BEGIN
    CREATE DATABASE NBS_DataIngest
END
GO
USE NBS_DataIngest
GO

Grant permissions for the nbs_ods user:

USE [NBS_DataIngest]
GO
CREATE USER [nbs_ods] FOR LOGIN [nbs_ods]
GO
USE [NBS_DataIngest]
GO
ALTER USER [nbs_ods] WITH DEFAULT_SCHEMA=[dbo]
GO
USE [NBS_DataIngest]
GO
ALTER ROLE [db_owner] ADD MEMBER [nbs_ods]
GO

Liquibase

Data Ingestion includes a built-in Liquibase integration that automatically applies database schema changes on deployment.
- DB changes detail can be reviewed here:
  - DI Liquibase: NEDSS-DataIngestion/data-ingestion-service/src/main/resources/db at main · CDCgov/NEDSS-DataIngestion
See Deploy Data Ingestion using Helm for deployment steps.

Liquibase DB change verification

To verify whether the database changes were applied, first ensure the DI container is stable and running; since the container manages Liquibase, it won’t start if Liquibase fails.
If there is failure by Liquibase, the DI pod will be unstable, and specific error can be found within the container log.

Deploy Data Ingestion using Helm

Use the values.yaml file supplied in the nbs-helm-vX.Y.Z.zip release package. Set the ECR repository, ECR image tag, database server endpoints, MSK (Kafka) bootstrap server, and ingress host values.
1. Navigate to the NEDSS-Helm/releases page.
2. Scroll down to the Assets listed for the latest or previous releases.
3. Download the zip file for the release.
4. Find the values.yaml file under charts\dataingestion-service.
Confirm that DNS entries for the following host were created and point to the network load balancer in front of your Kubernetes cluster (this must be the ACTIVE NLB provisioned by nginx-ingress in the base install steps). Make this change in your authoritative DNS service (for example, Route 53). Replace EXAMPLE_DOMAIN with your domain name in values.yaml. See the ingress controller domain table for reference. DataIngestion service application: data.site_name.example_domain.com

Set the image repository and tag:

 image:
   repository: "quay.io/us-cdcgov/cdc-nbs-modernization/data-ingestion-service"
   pullPolicy: IfNotPresent
   tag: <release-version-tag> # for example, v1.0.1

To enable RTR ingress, set reportingService.enabled to "true". Set it to "false" if RTR services are not used:
```
 reportingService:
   enabled: "true"
```

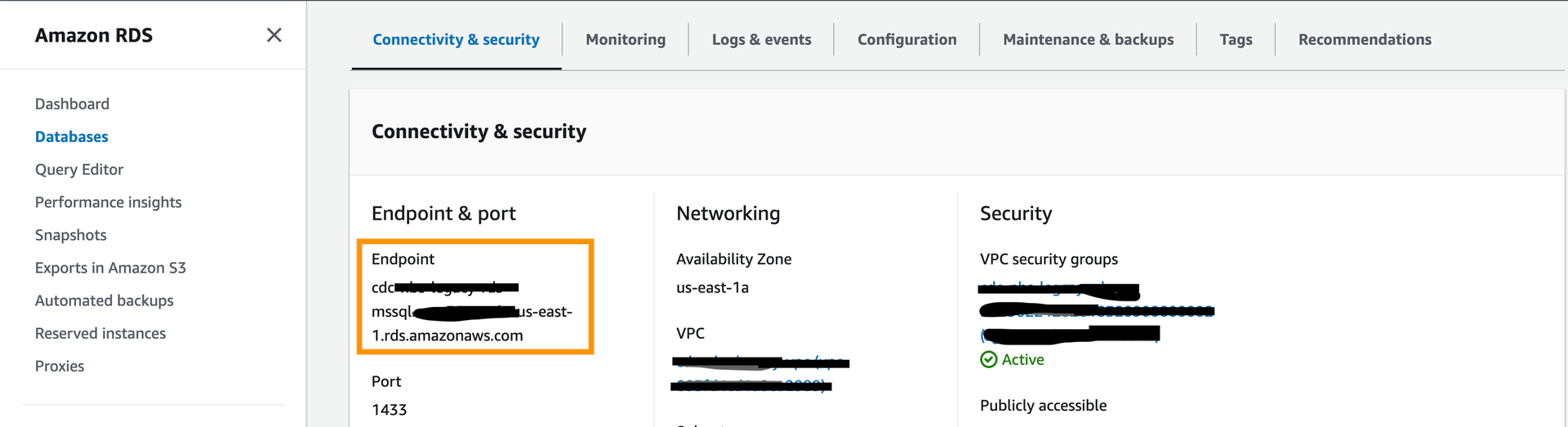

Set the JDBC connection values. NBS_DataIngest is the newly created database for the Data Ingestion service. NBS_MSGOUTE and NBS_ODSE are existing NBS databases. The dbserver value is the database server endpoint only; do not include the port number.
```
jdbc:
   dbserver: "EXAMPLE_DB_ENDPOINT"
   username: "EXAMPLE_ODSE_DB_USER"
   password: "EXAMPLE_ODSE_DB_USER_PASSWORD"
```

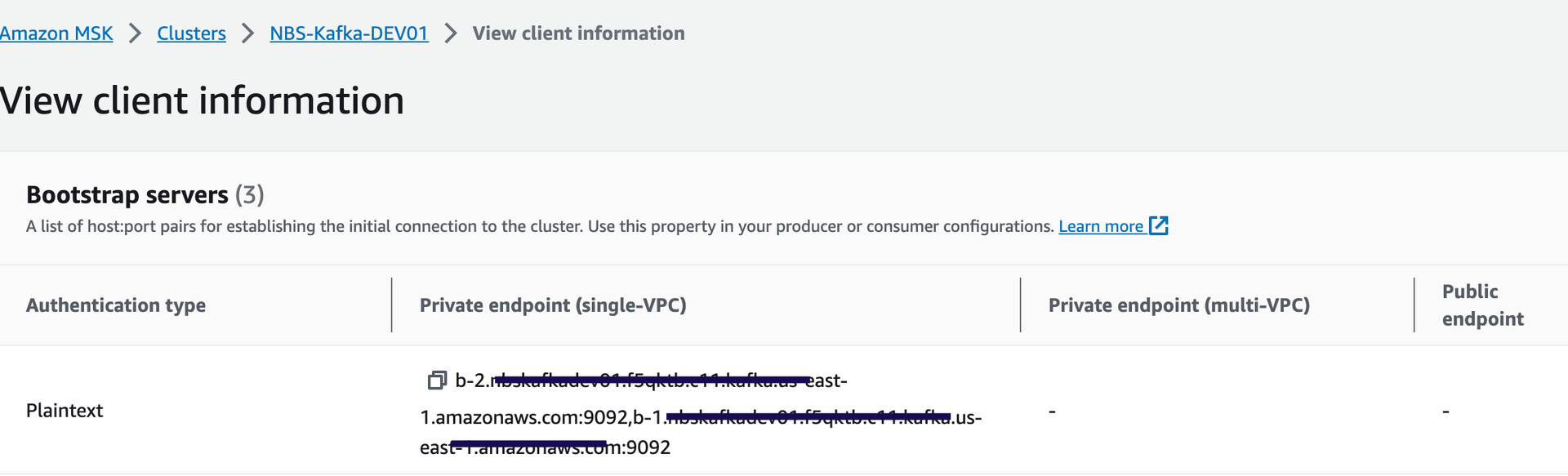

Set the Kafka broker endpoint. Use either of the two private (plaintext) endpoints:
```
kafka:
   cluster: "EXAMPLE_MSK_KAFKA_ENDPOINT"
```

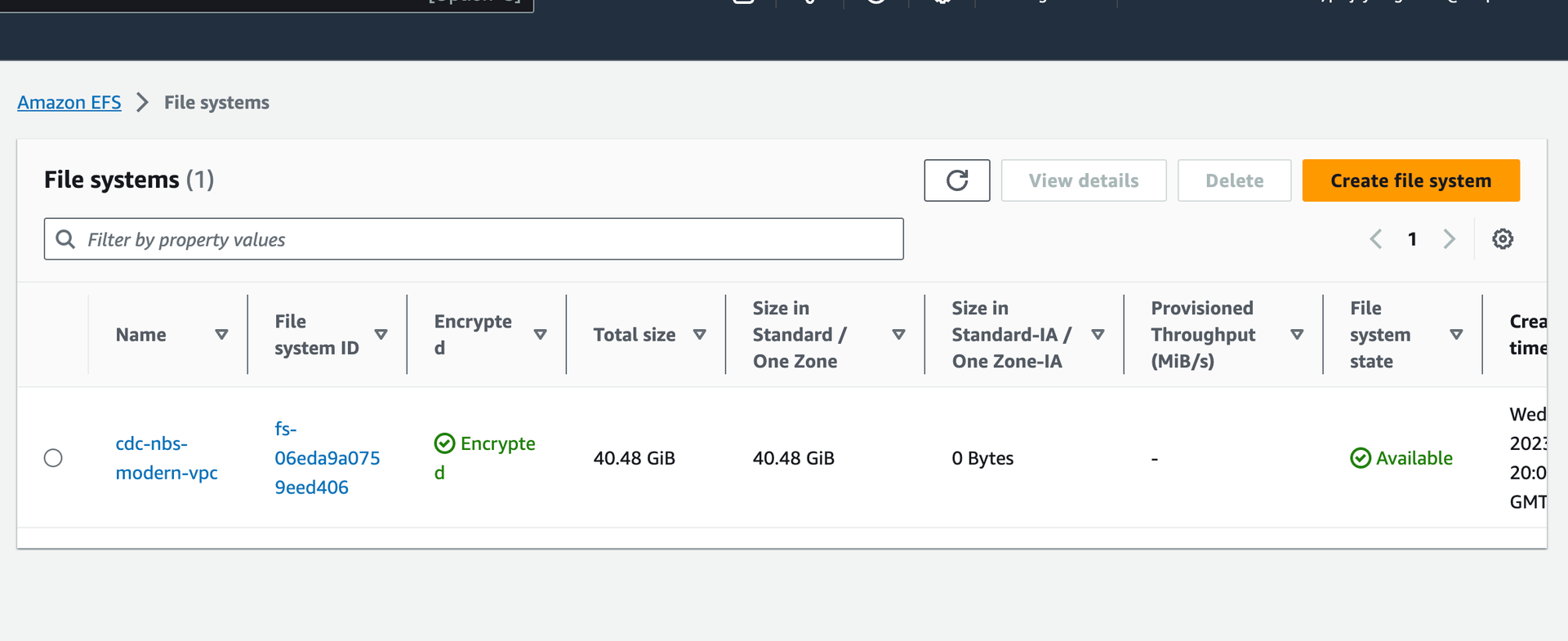

Set efsFileSystemId to the EFS file system ID from the AWS console:
```
efsFileSystemId: "EXAMPLE_EFS_ID"
```
Set the Keycloak auth URI. In the default configuration this value should not need to change unless the name or namespace of the Keycloak pod is modified:
```
authUri: "http://keycloak.default.svc.cluster.local/auth/realms/NBS"
```
Optional: Configure SFTP for manual ELR file drop-off. Data Ingestion can poll ELRs from an external SFTP server. To enable this, set sftp.enabled to "enabled" and provide the appropriate host, username, and password. If the SFTP server is unavailable or not needed, set sftp.enabled to "disabled" or leave it empty:
```
sftp:
  enabled: "EXAMPLE_SFTP_ENABLED"
  host: ""EXAMPLE_SFTP_HOST
  username: "EXAMPLE_SFTP_USER"
  password: "EXAMPLE_SFTP_PASS"
  elrFileExtns: "txt,hl7"
  filePaths: "/"
```

For more information about SFTP support, please see: data-ingestion-sftp-support

Install the Data Ingestion service:

helm install dataingestion-service -f ./dataingestion-service/values.yaml dataingestion-service

Confirm the pod is running before continuing:

kubectl get pods

Validate the service:

https://<data.EXAMPLE_DOMAIN>/ingestion/actuator/info
https://<data.EXAMPLE_DOMAIN>/ingestion/actuator/health

To enable Swagger for testing (disabled by default in production), set springBootProfile to dev under charts/dataingestion-service/values.yaml:
```
 https://<data.EXAMPLE_DOMAIN>/ingestion/swagger-ui/index.html#/
```
