Deploy the real-time reporting (RTR) add-on

Real-time reporting (RTR) is an optional, near-real-time add-on for NBS 7. RTR reduces reporting latency from up to 24 hours in legacy NBS 6 to between 5 minutes and 1 hour by replacing batch processing through MasterETL with streaming through Kafka Connect.

This guide covers deploying RTR end to end with Helm charts. RTR streams row-level changes from selected NBS_ODSE and NBS_SRTE tables into Kafka topics, then loads those changes into reporting data stores.

On this page

  1. Prerequisites
  2. Create rdb_modern database (optional)
  3. Create service users and database objects
  4. Ongoing database upgrades
  5. Deploy RTR services

This feature is in Beta preview and not production ready.

The database scripts referenced in this guide are maintained in the DataReporting repository. Required database objects can be created either through Liquibase or by manual script execution. Both options are referenced in the relevant sections.

If you encounter issues during database setup, contact support at nbs@cdc.gov.

Prerequisites

  1. Database release version: Verify the baseline NBS release version is 6.0.17. Run the following query:

    USE NBS_ODSE;
SELECT max(Version) current_version
FROM NBS_ODSE.dbo.NBS_Release;

Or run the following query to check the config value:

   use [NBS_ODSE];
   select * from NBS_configuration where config_key = 'CODE_BASE'
  1. Classic ETL: Ensure these ETL batch jobs have run successfully before setting up the reporting database for real-time reporting (RTR).
    • a. ETL scheduled jobs:
    • MasterEtl.bat
    • PHCMartETL.bat
    • covid19ETL.bat
    • b. Note: Ensure to take a backup of rdb database before proceeding with the next steps
    • c. Database setup options:
      • Option 1: Use RDB as the default database for real-time reporting (RTR). Turn off the classic ETL batch jobs and proceed with onboarding.
      • Option 2: Create a separate database (rdb_modern) for real-time reporting (RTR). Steps are listed under Create rdb_modern database (optional).
  2. Environment variable: Set the appropriate environment variable to define the reporting database context. This ensures scripts execute against the correct reporting database.

Option 1 (RDB as the default database): Insert the following value into NBS_configuration:

  IF NOT EXISTS(SELECT 1 FROM NBS_ODSE.DBO.NBS_configuration WHERE config_key ='ENV' AND config_value ='PROD')
  INSERT INTO NBS_ODSE.dbo.NBS_configuration
  (config_key, config_value, short_name, desc_txt, default_value, valid_values, category, add_release, version_ctrl_nbr, add_user_id, add_time, last_chg_user_id, last_chg_time, status_cd, status_time, admin_comment, system_usage, config_value_large)
  VALUES(N'ENV', N'PROD', N'RTR reporting database', N'Indicates scripts should be run against RDB database', NULL, N'UAT, PROD', N'RTR', N'7.11.0', 1, 0, getdate(), 0, getdate(), N'A', getdate(), NULL, NULL, NULL);

Option 2 (rdb_modern as the default database): This setting overrides the default RDB during script execution unless a script explicitly prompts for a database.

  IF NOT EXISTS(SELECT 1 FROM NBS_ODSE.DBO.NBS_configuration WHERE config_key ='ENV' AND config_value ='UAT')
  INSERT INTO NBS_ODSE.dbo.NBS_configuration
  (config_key, config_value, short_name, desc_txt, default_value, valid_values, category, add_release, version_ctrl_nbr, add_user_id, add_time, last_chg_user_id, last_chg_time, status_cd, status_time, admin_comment, system_usage, config_value_large)
  VALUES(N'ENV', N'UAT', N'RTR reporting database', N'Indicates scripts should be run against UAT rdb_modern database', NULL, N'UAT, PROD', N'RTR', N'7.11.0', 1, 0, getdate(), 0, getdate(), N'A', getdate(), NULL, NULL, NULL);

Create rdb_modern database (optional)

If a separate database is required for UAT, restore RDB as rdb_modern. This keeps the classic ETL-hydrated RDB available while hosting components needed for real-time reporting (RTR). If you use AWS RDS, run the following steps.

  • i. Backup RDB
    • a. Login into AWS Account.
    • b. Navigate to RDS.
    • c. Ensure the RDS SQL Server has the Option for Backup and Restore Enabled in Options group.
    • d. Open any SQL Client and connect to SQL Server RDS instance.
    • e. Backup database to AWS S3.

    • Run this procedure to back up the SQL Server database to S3.

        exec msdb.dbo.rds_backup_database
  @source_db_name='RDB',
  @s3_arn_to_backup_to='arn:aws:s3:::cdc-nbs-state-upload-shared/Classic-6.0.16/rdb_classic_2024_07_22_5pmet.bak',
  @type='FULL'

    • Run the procedure to check the status.

        exec msdb.dbo.rds_task_status;
  • ii. Restore rdb_modern:
    • a. Open any SQL Client and connect to SQL Server RDS instance.
    • b. Restore RDB as rdb_modern by executing the following procedure.
     exec msdb.dbo.rds_restore_database
 @restore_db_name='rdb_modern',
 @s3_arn_to_restore_from='arn:aws:s3:::cdc-nbs-state-upload-shared/Classic-6.0.16/rdb_classic_gdit_07_10_5pmet.bak',
 @type='FULL';
  • Run the procedure to check the status.
exec msdb.dbo.rds_task_status;

Create service users and database objects

Complete these one-time onboarding steps for real-time reporting (RTR) setup.

  1. Create database users: Each user should have only the permissions required for its role. Review the scripts and update the PASSWORD values before execution.
  1. Create Kubernetes secrets: Kubernetes secrets are required for RTR services to access the database. Create secrets for each service user from step 1. (Ignore this step if secrets were already created in create secrets in your cluster.)
  1. Create required database objects: Scripts required for RTR can be executed with Liquibase or manually.
  • Option 1: If Liquibase is the preferred approach, please refer to steps in the Liquibase section to create all necessary objects before moving to step 4.
  • Option 2: The required database objects can also be manually created. Documentation on script execution sequence and supplemental db_upgrade.bat file is provided to support manual setup.
  1. Load data and enable Change Data Capture: This one-time onboarding step is required after all database objects are created in step 3.
  • a. Option 1: Manually execute scripts. Review and run scripts in the data_load folder.
  • b. Option 2: db_upgrade.bat file with --load-data flag run against the master database.
        --Verify change data capture. is_cdc_enabled=1 indicates successful configuration.
     SELECT name,
     is_cdc_enabled
     FROM sys.databases;

    --View ODSE tables with CDC enabled.
     USE NBS_ODSE;
     SELECT
     name,
     case when is_tracked_by_cdc   = 1 then 'YES'
     else 'NO' end as is_tracked_by_cdc
     FROM sys.tables
     WHERE is_tracked_by_cdc = 1;

    -- View SRTE tables with CDC enabled
     USE NBS_SRTE;
     SELECT
     name,
     case when is_tracked_by_cdc   = 1 then 'YES'
     else 'NO' end as is_tracked_by_cdc
     FROM sys.tables
     WHERE is_tracked_by_cdc = 1;

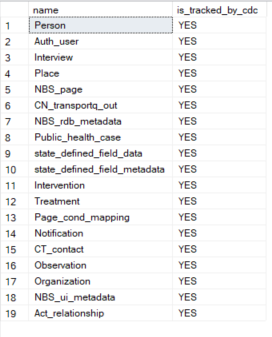

    cdc-enabled-odse-tables

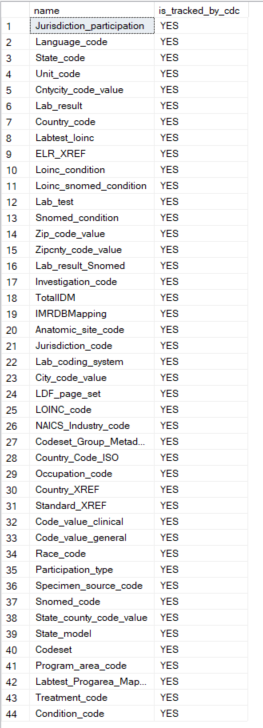

    cdc-enabled-srte-tables

Troubleshooting tip: After rdb_modern is restored, if the Change Data Capture is not producing data, run the following script:

-- Change DB owner after backup/restore
USE NBS_ODSE;
EXEC sp_changedbowner 'sa';

Ongoing database upgrades

After onboarding, future enhancements will be delivered using these two approaches.

  • Option 1: Execute Liquibase with the provided release tag. If Liquibase is the preferred method, please refer to steps in the Liquibase section.
  • Option 2: Manually execute the scripts located under manual_deployment. Onboarding scripts are excluded.

Deploy RTR services

Next, deploy the RTR services in the following order:

  • Liquibase
  • Debezium
  • Kafka connector
  • Java services
    • observation-reporting-service
    • person-reporting-service
    • organization-reporting-service
    • investigation-reporting-service
    • ldfdata-reporting-service
    • post-processing-reporting-service

RTR services use Kubernetes secrets for database credentials. See create secrets in your cluster.
