Initial Kubernetes deployment

This page explains how to deploy the core Kubernetes infrastructure services that NBS 7 requires before you install application components. Complete the sections in order. After you complete these steps, proceed to Keycloak Installation.

On this page

  1. Bootstrap Kubernetes
  2. Create secrets in your cluster
  3. Deploy NGINX ingress controller on your cluster
  4. Configure cert-manager (optional)
  5. Configure Linkerd and Cluster Autoscaler

Bootstrap Kubernetes

  1. Download the Helm configuration package from GitHub. Make sure you go through the release page and see what’s included Latest release of CDCgov/NEDSS-Helm.
  2. Open bash/mac/cloudshell/powershell and unzip the downloaded nbs-helm-vX.Y.Z zip file.
  3. All helm commands should be executed from the charts directory. Change directory to where you unzipped the helm charts folder <Helm_Dir>/charts.

Create secrets in your cluster

After you download and unzip the Helm configuration package, you need to create the Kubernetes secrets that your cluster will use to connect to its databases. This page explains how to populate the nbs-secrets.yaml manifest with your environment-specific database credentials and deploy it to the cluster. After you complete this step, move on to deploy the NGINX ingress controller.

  1. Obtain the sample Kubernetes manifest to create secrets expected to be available on the cluster from k8-manifests/nbs-secrets.yaml.
  2. Replace string values wherever there is an “EXAMPLE_”
Parameter Template Value Example/Description
odse_url “jdbc:sqlserver://EXAMPLE_DB_ENDPOINT:1433;databaseName=EXAMPLE_ODSE_DB_NAME;encrypt=true;trustServerCertificate=true;” jdbc:sqlserver://mydbendpoint:1433;databaseName=nbs_odse;encrypt=true;trustServerCertificate=true;
rdb_url “jdbc:sqlserver://EXAMPLE_DB_ENDPOINT:1433;databaseName=EXAMPLE_RDB_DB_NAME;encrypt=true;trustServerCertificate=true;” jdbc:sqlserver://mydbendpoint:1433;databaseName=nbs_rdb;encrypt=true;trustServerCertificate=true;
odse_user “EXAMPLE_ODSE_DB_USER” ODSE database user
odse_pass “EXAMPLE_ODSE_DB_USER_PASSWORD” ODSE database password
rdb_user “EXAMPLE_RDB_DB_USER” RDB database user
rdb_pass “EXAMPLE_RDB_DB_PASSWORD” RDB database password
srte_user “EXAMPLE_SRTE_DB_USER” SRTE database user
srte_pass “EXAMPLE_SRTE_DB_PASSWORD” SRTE database password
investigation_reporting_user “EXAMPLE_INVESTIGATION_REPORTING_DB_USER” RTR investiation reporting database user
investigation_reporting_pass “EXAMPLE_INVESTIGATION_REPORTING_DB_PASSWORD” RTR investiation reporting database password
ldfdata_reporting_user “EXAMPLE_LDFDATA_REPORTING_DB_USER” RTR ldfdata reporting database user
ldfdata_reporting_pass “EXAMPLE_LDFDATA_REPORTING_DB_PASSWORD” RTR ldfdata reporting database password
observation_reporting_user “EXAMPLE_OBSERVATION_REPORTING_DB_USER” RTR observation reporting database user
observation_reporting_pass “EXAMPLE_OBSERVATION_REPORTING_DB_PASSWORD” RTR observation reporting database password
organization_reporting_user “EXAMPLE_ORGANIZATION_REPORTING_DB_USER” RTR organiztion reporting database user
organization_reporting_pass “EXAMPLE_ORGANIZATION_REPORTING_DB_PASSWORD” RTR organization reporting database password
person_reporting_user “EXAMPLE_PERSON_REPORTING_DB_USER” RTR person reporting database user
person_reporting_pass “EXAMPLE_PERSON_REPORTING_DB_PASSWORD” RTR person database password
post_processing_reporting_user “EXAMPLE_POST_PROCESSING_REPORTING_DB_USER” RTR post processing reporting database user
post_processing_reporting_pass “EXAMPLE_POST_PROCESSING_REPORTING_DB_PASSWORD” RTR post processing database password
  1. Deploy the secrets to the cluster.
kubectl apply -f k8-manifests/nbs-secrets.yaml

kubernetes-secretes-within-cluster

Deploy NGINX ingress controller on your cluster

After you create and deploy your Kubernetes secrets, set up the NGINX ingress controller. This page explains how to use the preconfigured Helm values to install the controller, verify that the AWS network load balancer is active, and create the DNS records your cluster needs to route traffic. After you complete these steps, configure Cert Manager to manage TLS certificates for your cluster.

Install the NGINX ingress controller

The values in charts/nginx-ingress/values.yaml (part of the nbs-helm-vX.Y.Z zip file) are preconfigured to set up Prometheus metrics scraping and to instruct the NGINX controller to create an AWS network load balancer instead of a classic load balancer.

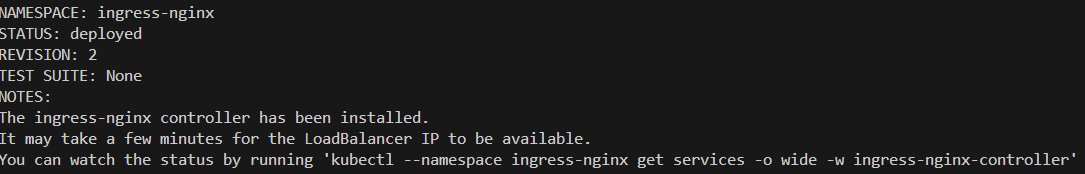

  1. Install the NGINX ingress controller:

    helm upgrade --install ingress-nginx ingress-nginx --repo https://kubernetes.github.io/ingress-nginx -f ./nginx-ingress/values.yaml --namespace ingress-nginx --create-namespace --version 4.11.5

    ingress-nginx

  2. Monitor the deployment status:

    kubectl --namespace ingress-nginx get services -o wide -w ingress-nginx-controller

    Use Ctrl+C to exit if the command is still running.

  3. In the AWS load balancers console, confirm a network load balancer was created and its target groups point to the EKS cluster.

  4. Confirm at least one NGINX controller pod is running:

    kubectl get pods -n=ingress-nginx

Create DNS records

Create A records in your DNS service (for example, Route 53) pointing the following subdomains to the active network load balancer provisioned above. Replace example_domain.com with your domain name.

NiFi has known security vulnerabilities. Only add a NiFi DNS entry if you need to administer it directly. Omit it otherwise.

Subdomain Template Example
NBS (main domain) site_name.example_domain.com fts3.nbspreview.com
NBS 6 (classic) app-classic.site_name.example_domain.com app-classic.fts3.nbspreview.com
NBS 7 (modern) app.site_name.example_domain.com app.fts3.nbspreview.com
NiFi (optional) nifi.site_name.example_domain.com nifi.fts3.nbspreview.com
Data Ingestion data.site_name.example_domain.com data.fts3.nbspreview.com

Configure cert-manager (optional)

cert-manager creates TLS certificates for workloads in your cluster and renews the certificates before they expire. By default, cert-manager uses Let’s Encrypt as the certificate authority for NiFi and modernization-api services.

If you have manual certificates, skip steps 1-4 below and store your certificates in Kubernetes secrets instead. For more information, see the Kubernetes Secrets documentation.

  1. Locate the cluster issuer manifest in the nbs-helm-v7.X.0 zip file at k8-manifests/cluster-issuer-prod.yaml.

  2. In cluster-issuer-prod.yaml, update the email address to a valid operations address. Let’s Encrypt uses this address to notify you of upcoming certificate expirations if automatic renewal stops working.

  3. From your terminal, apply the manifest:

    cd <HELM_DIR>/k8-manifests
kubectl apply -f cluster-issuer-prod.yaml

  4. Verify the cluster issuer is deployed and in a ready state:

    kubectl get clusterissuer

    You should see letsencrypt-production with a READY status of True.

    lets-encrypt

Configure Linkerd and Cluster Autoscaler

Annotate the default namespace for Linkerd

Linkerd must be installed as part of the Terraform infrastructure deployment before completing these steps. Annotating the default namespace enables Linkerd mTLS on all microservices deployed in the following steps.

  1. Annotate the default namespace:

    kubectl annotate namespace default "linkerd.io/inject=enabled"

    linkerd

  2. Verify the annotation is in place:

    kubectl get namespace default -o=jsonpath='{.metadata.annotations}'

    The output should include {"linkerd.io/inject":"enabled"}.

  3. If this is an update rather than a new install, restart the application pods in the default namespace so that Linkerd sidecars are injected. Restarted pods should show 2/2 in the ready column.

Install the Cluster Autoscaler

The Cluster Autoscaler is a Helm chart that horizontally scales cluster nodes as needed. Update the following values in charts/cluster-autoscaler/values.yaml with values from the AWS console:

clusterName: <EXAMPLE_EKS_CLUSTER_NAME>
autoscalingGroups:
  - name: <EXAMPLE_AWS_AUTOSCALING_GROUP_NAME>
    maxSize: 5
    minSize: 3
awsRegion: us-east-1

Install the chart:

helm repo add autoscaler https://kubernetes.github.io/autoscaler
helm upgrade --install cluster-autoscaler autoscaler/cluster-autoscaler \
  -f ./cluster-autoscaler/values.yaml \
  --namespace kube-system

Verify the pod is running:

kubectl --namespace=kube-system get pods \
  -l "app.kubernetes.io/name=aws-cluster-autoscaler,app.kubernetes.io/instance=cluster-autoscaler"
