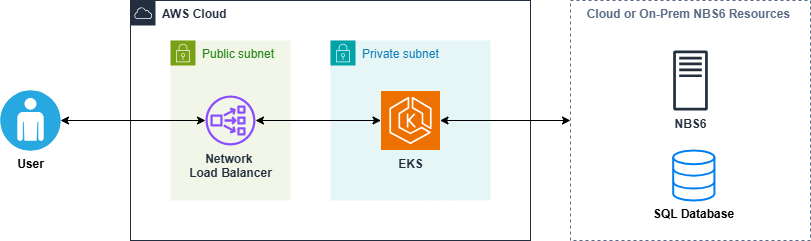

This quick guide provides a simple step-by-step approach for deploying the NBS 7 infrastructure and microservices in an AWS environment. It is intended for experienced administrators who are familiar with AWS, Kubernetes, Helm, and Terraform.

This guide is NOT meant for a production deployment. Please review System Administrator Guide for a full production deployment and guidelines.

Following resources will be installed and configured with this guide

Terraform

  • Modern VPC, Subnets, Route Tables
  • EKS Cluster, Nodes
  • Network Load Balancer
  • MSK
  • Amazon Prometheus
  • Amazon Grafana
  • EFS
  • KMS
  • S3 Bucket

Manual

  • Route53 Updates: Need to create dns entries in route53 to point app and data urls to network load balancer

NBS7 Core Services

  1. Elasticsearch - For lightning-fast searches.
  2. Modernization API - This service incorporates essential modern NBS features such as patient search, event search, patient profile, investigations, etc.
  3. Nifi - Populates Elasticsearch indices from the NBS database.
  4. NBS Gateway - Efficiently manages intricate strangler routing logic between modern and legacy NBS.
  5. Data Ingestion - Enables NBS to seamlessly ingest HL7 data from labs and other entities into the NBS system.
  6. Keycloak - Primary Identity Provider (IDP). Also used for token management and SSO integration, for example, OAuth, SAML integration with Okta, etc.

Prerequisites

Tools to Install

Environment Requirements

  • AWS Account with NBS 6.0.16 access (or newer)
  • DNS routing infrastructure: Domain info for modernized nbs application (e.g app.site_name.domain.com)
  • IAM Roles for Terraform and Kubernetes
  • Access to NBS 6 (sql server) databases to run scripts
  • S3 bucket for Terraform state

Set Up AWS Infrastructure - Terraform


NBS7_Infrastructure

Prepare the Directory

mkdir -p ~/nbs-setup/terraform/aws/nbs7-mySTLT-test
cd ~/nbs-setup/terraform/aws/nbs7-mySTLT-test

Download Terraform Configuration

Clone the infrastructure repo:

git clone https://github.com/CDCgov/NEDSS-Infrastructure.git

Copy standard template:

cp -pr terraform/aws/samples/NBS7_standard terraform/aws/nbs7-mySTLT-test

Customize Variables

  • Update the terraform.tfvars and terraform.tf with your environment-specific values by following the instructions here.

ℹ️ Review the inbound rules on the security groups attached to your database instance and ensure that the CIDR you intend to use with your NBS 7 VPC (modern-cidr) is allowed to access the database.

Initialize and Apply Terraform

terraform init
terraform plan
terraform apply

Validate Infrastructure

  • Confirm VPC, EKS cluster, subnets, and node groups are created.
  • Verify EKS cluster authentication and running pods & nodes:
    aws eks --region us-east-1 update-kubeconfig --name <clustername> e.g. cdc-nbs-sandbox
kubectl get pods --namespace=cert-manager
kubectl get nodes

Deploy Core Kubernetes Services - Helm

Install NGINX Ingress

helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx
helm install ingress-nginx ingress-nginx/ingress-nginx
kubectl --namespace ingress-nginx get services -o wide -w ingress-nginx-controller
kubectl get pods -n=ingress-nginx

Create DNS Entries in Route53

  • Modernized NBS application pointed to the new network load balancer in front of your Kubernetes cluster
    app.<site_name>.<domain>.com
  • Data Services pointed to the new network load balancer in front of your Kubernetes cluster
    data.<site_name>.<domain>.com

Install Cert Manager (Optional)

helm repo add jetstack https://charts.jetstack.io
helm install cert-manager jetstack/cert-manager --namespace cert-manager --create-namespace --set installCRDs=true

Install and Verify LinkerD (Optional)

kubectl annotate namespace default "linkerd.io/inject=enabled"
kubectl get namespace default -o=jsonpath='{.metadata.annotations}'

Install Cluster Autoscaler (Optional)

helm repo add autoscaler https://kubernetes.github.io/autoscaler
helm install cluster-autoscaler autoscaler/cluster-autoscaler -n kube-system

Verify Services are Running

kubectl get pods -A

Install Keycloak

Create Keycloak Database. Make sure to update the database password.

use master
    IF NOT EXISTS(SELECT * FROM sys.databases WHERE name = 'keycloak')
    BEGIN
        CREATE DATABASE keycloak
    END
GO
    USE keycloak
GO

BEGIN
    CREATE LOGIN NBS_keycloak WITH PASSWORD = 'EXAMPLE_KCDB_PASS8675309';
    CREATE USER NBS_keycloak FOR LOGIN NBS_keycloak;
    EXEC sp_addrolemember N'db_owner', N'NBS_keycloak'
END

Install Keycloak Container

Edit the following parameters in <helm extract directory>/charts/keycloak/values.yml:

  • kcDbPassword
  • kcDbUrl
  • keycloakAdminPassword
  • efsFileSystemId
    helm install keycloak --namespace default --create-namespace -f keycloak/values.yaml

Port forward to access Keycloak admin interface

kubectl --namespace default port-forward "$POD_NAME" 8080;
http://127.0.0.1:8080/auth

Configure Realm, Users and Clients

  • Login as Keycloak admin user
  • Upload/charts/keycloak/extra/01-NBS-realm-with-DI-client.json
  • Upload/charts/keycloak/extra/05-nbs-users-nnd-client.json
  • Upload NBS Users helm from/charts/keycloak/extra/02-nbs-users-realm.json
  • Run partial import from nbs-users realm for/charts/keycloak/extra/03-nbs-users-base-users.json
  • Run partial import from nbs-users realm for/charts/keycloak/extra/04-nbs-users-development-clients.json

Deploy NBS Microservices - Helm

Deploy the helm charts in the following order.

  1. elasticsearch-efs
  2. modernization-api
  3. nifi-efs
  4. nbs-gateway
  5. dataingestion

ℹ️ Run the below commands from <helm extract directory>/charts directory

Deploy Elasticsearch

Update the required parameters in values.yaml by following the table here

helm install elasticsearch -f ./elasticsearch-efs/values.yaml elasticsearch-efs

Deploy Modernization API

Update the required parameters in values.yaml by following the table here

helm install modernization-api -f ./modernization-api/values.yaml modernization-api

Deploy NiFi

Update the required parameters in values.yaml by following the table here

helm install nifi -f ./nifi-efs/values.yaml nifi-efs

Deploy NBS Gateway

Update the required parameters in values.yaml by following the table here

helm install nbs-gateway -f ./nbs-gateway/values.yaml nbs-gateway

Deploy DataIngestion

Data Ingest DB creation and user permission should be executed prior to the deployment of the data ingestion:

IF NOT EXISTS(SELECT * FROM sys.databases WHERE name = 'NBS_DataIngest')
BEGIN
    CREATE DATABASE NBS_DataIngest
END
GO
USE NBS_DataIngest
GO

use [NBS_ODSE];
GO
USE [NBS_DataIngest]
GO
CREATE USER [nbs_ods] FOR LOGIN [nbs_ods]
GO
USE [NBS_DataIngest]
GO
ALTER USER [nbs_ods] WITH DEFAULT_SCHEMA=[dbo]
GO
USE [NBS_DataIngest]
GO
ALTER ROLE [db_owner] ADD MEMBER [nbs_ods]
GO

Update the required parameters in values.yaml by following the table here

helm install dataingestion-service -f ./dataingestion-service/values.yaml dataingestion-service

Verify Services

  • Confirm all pods are running before moving on.
    kubectl get pods -A

Validate Installation

Manual Tests

Automated Tests

  • Use nbs-test-api.sh and nbs-test-webui.sh for basic API and UI smoke tests.

Cleanup

Follow the steps below to cleanup environment

# Remove DNS entries
1. app.<site_name>.<domain>.com
2. data.<site_name>.<domain>.com

# Remove nlb and ingress routing
helm list --namespace ingress-nginx
helm uninstall --namespace ingress-nginx ingress-nginx

# Empty fluentbit s3 bucket manually

terraform destroy

Go Live

We recommend before going live, review the System Administrator Guide.

Support

  • For support, contact NBSSupport@cdc.gov.
  • For ongoing updates, check the GitHub repo for new releases.
