  1. Deploy NGINX ingress controller on the Kubernetes cluster

Deploy NGINX ingress controller on the Kubernetes cluster

  1. NGINX will use the values in charts/nginx-ingress/values.yaml as a part of nbs-helm-vX.Y.Z zip file. These values have been preconfigured to setup Prometheus to scrape metrics and also to instruct NGINX controller to create AWS network load balancer instead of classic load balancer in front of the k8 NGINX ingress.

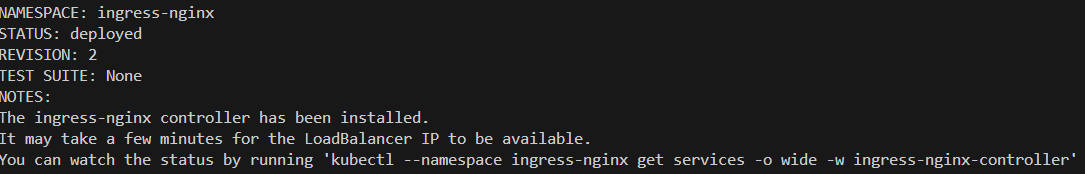

    • a. The result of the command below should create NGINX controller within Kubernetes.
         helm upgrade --install ingress-nginx ingress-nginx --repo https://kubernetes.github.io/ingress-nginx -f ./nginx-ingress/values.yaml --namespace ingress-nginx --create-namespace --version 4.11.5

      ingress-nginx

    • b. Monitor the status of the nginx deployment
         kubectl --namespace ingress-nginx get services -o wide -w ingress-nginx-controller

      NOTE: Use Ctrl+c to exit if the command is still running.

    • c. You may also check that a network load balancer was created in the AWS web console and the target groups are pointing to the EKS cluster List of load balancers
    • d. Run the following command to confirm at least one NGINX controller pod is running
         kubectl get pods -n=ingress-nginx
  2. You will need to manually create some DNS entries. Ensure that the following DNS entries (A records) point to the new network load balancer in front of your Kubernetes cluster (make sure this is the ACTIVE NLB just provisioned via nginx-ingress). This should be done in your DNS service (For eg: Route 53). Please replace example.com with the appropriate domain_name from the Table below.
    • a. Modernized NBS Application - Eg: app.site_name.example_domain.com
    • b. Data Services - data.site_name.example_domain.com
    • c. NIFI application - Eg: nifi.example.com [Note: NIFI has reported vulnerabiltiies. Please expose only if you absolutely need it and want to adminsiter it. Otherwise, dont add NIFI]. These are the 5 required URL’s for NBS
    Parameter Template Value Example
    nbs domain site_name.example_domain.com fts3.nbspreview.com
    classic sub_domain (NBS 6) app-classic.site_name.example_domain.com app-classic.fts3.nbspreview.com
    app sub_domain (Modern NBS 7) app.site_name.example_domain.com app.fts3.nbspreview.com
    nifi sub_domain (Nifi) [Optional, only if you want to administer NIFI] nifi.site_name.example_domain.com nifi.fts3.nbspreview.com
    data ingestion sub_domain (DI) data.site_name.example_domain.com data.fts3.nbspreview.com
