Technical Acceptance Testing

This document guides installers of the DIBBs eCR Viewer through testing needed to verify installation.

Overview

After you’ve installed DIBBs services in your jurisdiction, this guide walks you through the steps needed to verify the installation. This will ensure that the system has been properly installed in your environment and that it’s ready for your public health department to interact with.

Please consult the eCR Viewer Setup Guide to verify that your environment variables and infrastructure have been configured correctly.

Prerequisites

• You’ve installed DIBBs services using DIBBs AWS Terraform, DIBBs Azure Terraform, DIBBs VM, or a custom installation.
• You’ve set the appropriate environment variables for your configuration based on the setup guide.
• You have access to sample eCR/RR files.

Acceptance Checklist

The following instructions will guide you through this list.

• Verified that the eCR Viewer health check is available
• Verified that the metadata database is up to date (if using one)
• Verified that the process-zip endpoint run was successful
• Verified that the eCR FHIR bundle is available in blob storage
• Verified that the processed eCR is visible in the viewer

Installation Testing

To test the installation, we’ll run a series of API requests to the DIBBs services.

{{dibbs-url}} will be used throughout the document to indicate the URL your services are available on — use your own URL instead.

Instructions have been provided for different operating systems, so follow the instructions applicable to your machine.

1. eCR Viewer Health Check

Here, we’ll verify that the eCR Viewer service is available to receive requests by running the eCR Viewer Health Check request.

Invoke-WebRequest -Uri "https://{{dibbs-url}}/ecr-viewer/api/health-check" -UseBasicParsing
Copy

curl https://{{dibbs-url}}/ecr-viewer/api/health-check
Copy

You should receive the following response:

{ "status": "OK", "version": {{app version}}, "dependencies": { {{dependency name}}: {{status ("UP" or "DOWN")}} } }
Copy

2. Database Migrations

If you are running the NBS-integrated version of the Viewer, you can skip this step.

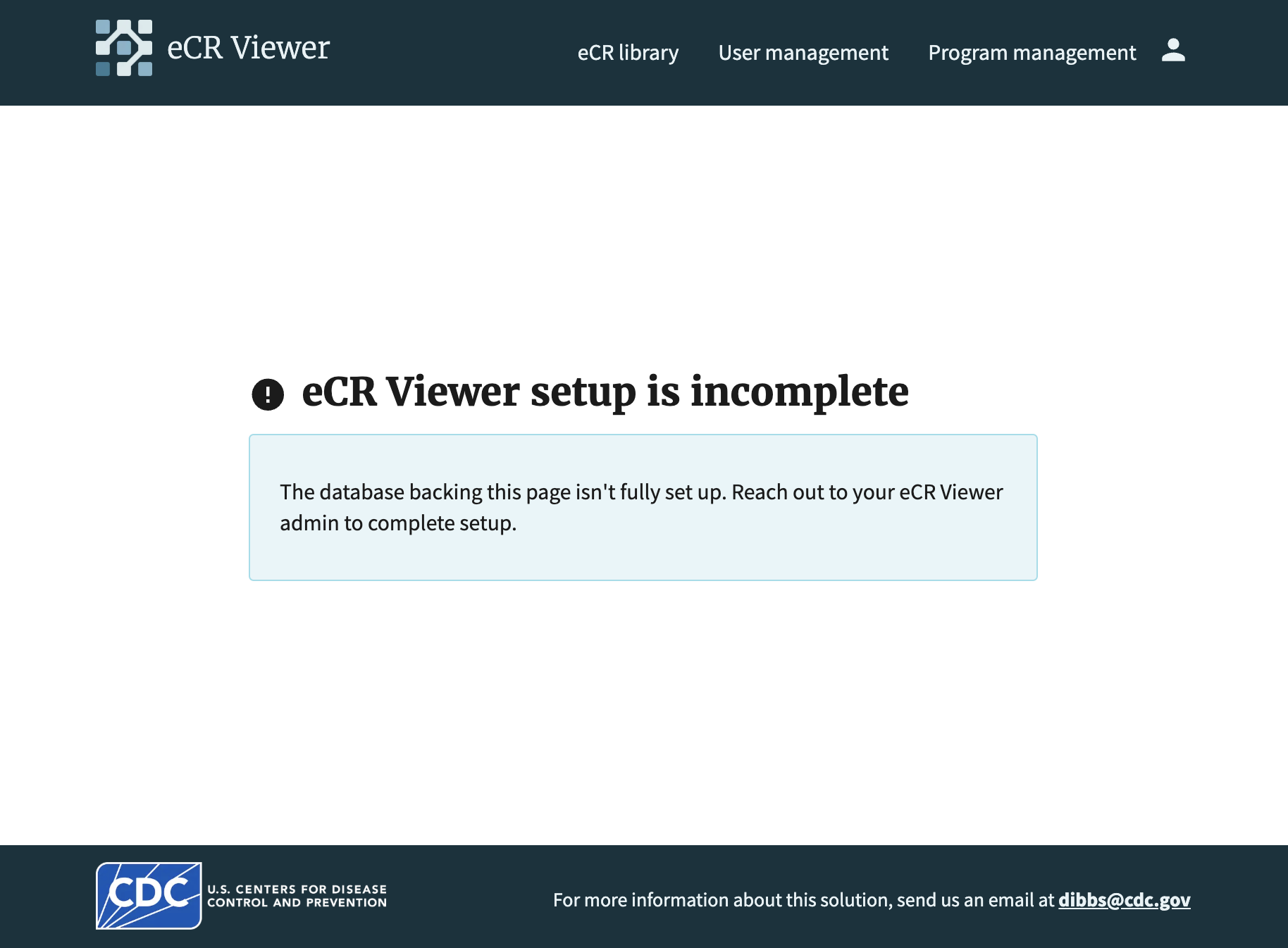

If you are running the viewer with a metadata database (standalone or dual boot), you will need to run database migrations upon the first install of the application or anytime there is an update to the database schema. If migrations need to be applied, you will see an error when trying to use the viewer.

In order to apply migrations, you will need the migration secret. This can be set to a static value by setting the METADATA_DATABASE_MIGRATION_SECRET, otherwise it will be generated randomly each time the viewer is started. Once generated, it will be logged to the eCR Viewer server logs. Check your container's logs to find this secret - it will be logged as migration_secret=<your secret here>.

$boundary = [guid]::NewGuid().ToString()
$body = (
    "--$boundary",
    "Content-Disposition: form-data; name=`"migration_secret`"",
    "Content-Type: application/text",
    "",
    "{{ migration-secret }}",
    "--$boundary--"
) -join "`r`n"

$headers = @{
    "Content-Type" = "multipart/form-data; boundary=$boundary"
}

Invoke-RestMethod -Uri "https://{{ dibbs-url }}/ecr-viewer/api/migrate-db" `
-Method Post -Headers $headers -Body $body
Copy

curl {{ dibbs-url }}/ecr-viewer/api/migrate-db --form migration_secret={{ migration-secret }}
Copy

3. Pipeline Run

Now, we need to verify that an eCR can run through the DIBBs pipeline. Below, you’ll need to replace {{path-to-eCR-zip-file}} with the actual link to your sample eCR/RR zip file.

Please ensure that the sample eCR you’re using is a zip file, and the eICR and RR files are named as they are coming out of AIMs — CDA_eICR.xml and CDA_RR.xml.

Run the Process eCR request:

$FilePath = '{{ path-to-eCR-zip-file }}'
$URL = 'https://{{ dibbs-url }}/ecr-viewer/api/process-zip'
Function Import-ApiForm {
    param(
        [Parameter(Mandatory = $true)][String] $URI,
        [Parameter(Mandatory = $true)][System.IO.FileSystemInfo] $File,
        [Parameter(Mandatory = $true)][String] $ContentType,
        [Parameter(Mandatory = $true)][String] $NewName
    )
    BEGIN{
    $FormTemplate = @'
--{0}
Content-Disposition: form-data; name="upload_file"; filename="{1}"
Content-Type: {2}

{3}
--{0}--

'@
    $enc = [System.Text.Encoding]::GetEncoding("iso-8859-1")
    }
    PROCESS{
        $Result = $False
        $boundary = [guid]::NewGuid().Guid
        $bytes = [System.IO.File]::ReadAllBytes($File.FullName)
        $Data = $enc.GetString($bytes)
        $body = $FormTemplate -f $boundary, $NewName, $ContentType, $Data
        $FormContentType = "multipart/form-data; boundary=$boundary"
        Try {
            $Result = Invoke-RestMethod -Uri $Uri -Method POST -ContentType $FormContentType -Body $body -WebSession $STWebSession -DisableKeepAlive
        } Catch {
            Write-Error $_
        }
        return $Result
    }
    END{}
}

$FileInfo = Get-Item $FilePath

Import-ApiForm -URI $URL -File $FileInfo -ContentType "application/zip" -NewName "ecr_zip"
Copy

$FilePath = "{{path-to-eCR-zip-file}}"

Invoke-WebRequest -Uri "https://{{ dibbs-url }}/ecr-viewer/api/process-zip" `
    -Method Post `
    -UseBasicParsing `
    -Form @{ upload_file = Get-Item $FileEPath } `
Copy

curl {{ dibbs-url }}/ecr-viewer/api/process-zip \
    --form upload_file=@"{{ path to file }}";type=application/zip
Copy

curl {{ dibbs-url }}/ecr-viewer/api/process-zip \
    --form 'upload_file=@"{{ path to file }}";type=application/zip'
Copy

You should see the following response:

{ "message": "Success. Saved FHIR bundle." }
Copy

4. Check FHIR Bundle Storage

To confirm that the eCR processed through the DIBBs pipeline correctly, we’ll manually check the output FHIR bundles in blob storage.

Navigate to your cloud provider’s console and find the DIBBs blob storage component. You should see the eCR that was just processed in blob storage.

Take note of the eCR file name {{ecr-id}}.json in blob storage — you'll need it for the next step.

5. View Processed eCR

Verify that the eCR Viewer is able to display the eCR that was processed.

To access that eCR, run the following request in a browser:

http://{{dibbs-url}}/ecr-viewer/view-data?id={{ecr-id}}
Copy

where {{ecr-id}} should be replaced with the eCR ID that you copied from the last step.

Please note that depending on your authentication settings for the Viewer, this step may not work directly from a browser – you may have to find the eCR in your NBS environment instead, and use the “View eICR Document” button to view. However, even if you hit an authentication error on this page, it means the Viewer is configured correctly.

Debugging

If you run into any issues during testing, please reach out to the DIBBs team! We want to know if there are changes needed to the core pipeline. You can email us at dibbs@cdc.gov.

Some common errors are noted below.

Invalid data

If your eCR contains invalid data, it will be rejected by the pipeline. You’ll see a message like:

{ "message": "Failed to save FHIR bundle." }
Copy

Or:

{ "message": "Internal Server Error" }
Copy

More details can typically be found in the server's logs. Generally speaking, you can get around this error by re-running or choosing a different eCR bundle. You’ll also need to make sure your eCRs are named as they are coming out of AIMs — CDA_eICR.xml and CDA_RR.xml.

Next Steps

Congratulations! You’ve completed the verification process for the DIBBs installation.

Please reach to your contact within your public health department and dibbs@cdc.gov to confirm that the installation was successful.
