eCR Viewer API Documentation

View eCR

Display an eCR

URL : /ecr-viewer/view-data?id=:id&snomed-code=:snomed&auth=:auth

URL Parameters :

• id=[string] where id is the ID of the eCR.
• snomed-code=[string] Optional. Where snomed-code is the condition the user is viewing the eCR for.
• auth=[string] where auth is the authentication token for the user. Only required if NBS_PUB_KEY is set and other auth not enabled.

Method : GET

Auth required : Yes, via auth param or broswer login flow

Permissions required : None

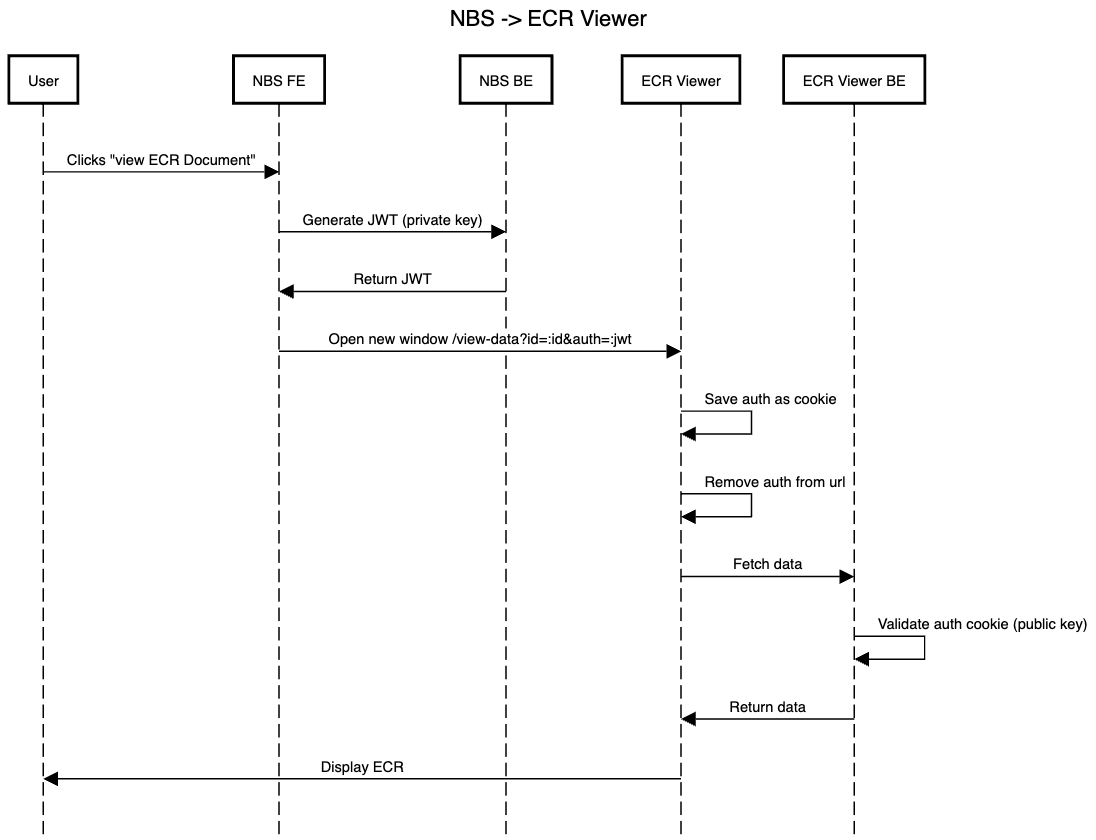

Example Architecture

Success Response

Condition : eCR exists and authentication is valid.

Code : 200 OK

Content : eCR will be displayed to the user

Error Responses

Condition : eCR does not exist with id

Code : 404 NOT FOUND

Content : Error will be displayed to user

Or

Condition : Authentication is invalid

Code : 401 UNAUTHORIZED

Content : Error will be displayed to user

Process eCR zip

Deprecated - please use Process eCR instead.

Process a zip file containing an eCR/RR pair

URL : /ecr-viewer/api/process-zip

POST Form Fields :

• upload_file=[File] where the file is a zip containing an eCR named CDA_eICR.xml and optionally a reportability response named CDA_RR.xml.
• return_fhir_bundle=[true|false] Optional. By default, the fhir bundle is not returned. Set this field to "true" to have the response include the bundle field with the FHIR json object.

Method : POST

Auth required : Yes, token passed via Authorization header

Permissions required : None

Example

Process an eCR (e.g. seed-scripts/baseECR/star-wars/yoda-zika-v1-positive) and have the processed FHIR bundle returned.

curl --location '<DIBBS_URL>/ecr-viewer/api/process-zip' \
--form 'upload_file=@"<PATH_TO_ECR_ZIP_FILE>";type=application/zip' \
--form 'return_fhir_bundle=true' \
--header 'Authorization: Bearer <TOKEN>'
Copy

Success Response

Condition : eCR was processed and saved to storage. If metadata database is enabled, metadata was saved to relational database.

Code : 200 OK

Content : message and optionally bundle if requested

Error Responses

Condition : eCR failed to process or metadata failed to save if enabled

Code : 400

Content : message with details on error

Or

Condition : eCR already processed

Code : 409 CONFLICT

Content : message with details on error

Process eCR

Process a message containing an eCR/RR pair

URL : /ecr-viewer/api/process-ecr

POST Form Fields :

• ecr=[string|File] Either a string containing the content of the eCR, an eCR xml file, or a zipped eCR/RR pair
• rr=[string|File] Optional. Either a string or file containing the content of the RR
• return_fhir_bundle=[true|false] Optional. By default, the fhir bundle is not returned. Set this field to "true" to have the response include the bundle field with the FHIR json object.

Note, in addition to accepting these fields as a form body, a stringified JSON body is also accepted.

Method : POST

Auth required : Yes, token passed via Authorization header

Permissions required : None

Example

Process an eCR (e.g. seed-scripts/baseECR/star-wars/yoda-zika-v1-positive) and have the processed FHIR bundle returned.

With inlined string contents:

curl --location '<DIBBS_URL>/ecr-viewer/api/process-ecr' \
--form 'ecr=<"<PATH_TO_ECR_FILE>"' \
--form 'rr=<"<PATH_TO_RR_FILE>"' \
--form 'return_fhir_bundle=true' \
--header 'Authorization: Bearer <TOKEN>'
Copy

With file contents:

curl --location '<DIBBS_URL>/ecr-viewer/api/process-ecr' \
--form 'ecr=@"<PATH_TO_ECR_FILE>"' \
--form 'rr=@"<PATH_TO_RR_FILE>"' \
--form 'return_fhir_bundle=true' \
--header 'Authorization: Bearer <TOKEN>'
Copy

With zip file:

curl --location '<DIBBS_URL>/ecr-viewer/api/process-ecr' \
--form 'ecr=@"<PATH_TO_ECR_RR_ZIP_FILE>";type=application/zip' \
--form 'return_fhir_bundle=true' \
--header 'Authorization: Bearer <TOKEN>'
Copy

Success Response

Condition : eCR was processed and saved to storage. If metadata database is enabled, metadata was saved to relational database.

Code : 200 OK

Content : message and optionally bundle if requested

Error Responses

Condition : eCR failed to process or metadata failed to save if enabled

Code : 400

Content : message with details on error

Or

Condition : eCR already processed

Code : 409 CONFLICT

Content : message with details on error

Migrate Metadata Database

Migrate the metadata database if needed. Typically, this is done to bring the database up to date with the state of the application, including updating the conditions used in the viewer to match the Trigger Code Reference Service. It can also be used to revert migrations and return the database to a prior state. If there is no admin user set up, this API can also be used to seed an initial admin user.

URL : /ecr-viewer/api/migrate-db

POST Form Fields :

• migration_secret=[secret string] confirm that you have permission to perform migrations. The secret is logged to the server and can optionally be set to a known value via the METADATA_DATABASE_MIGRATION_SECRET environment variable.
• direction=[up|down] Optional. By default an up migration to the latest state will be applied. If down is passed, the database will be migrated downward one step at a time. This means it may take multiple calls to the database to revert back to the desired state.
• skip_condition_update=[true|false] Optional. By default, when migrating up, the conditions reference data will be updated from the Trigger Code Reference Service. Conditions are never deleted, but names or categories could be updated if new data is available. To skip this update, pass the string "true" to this field.
• init_admin_email=[string] Optional. If passed and there is no admin already set up, this will create an admin user. Note, in order to be useful, the email must match a user who is able to sign in via the authentication provider used in the deployment.

Method : POST

Auth required : Yes, token passed via Authorization header

Permissions required : None

Example

Migrate a DB to the latest state.

curl --location '<DIBBS_URL>/ecr-viewer/api/migrate-db' \
--form 'migration_secret=<your migration secret>' \
--header 'Authorization: Bearer <TOKEN>'
Copy

Roll back a DB migration one step.

curl --location '<DIBBS_URL>/ecr-viewer/api/migrate-db' \
--form 'migration_secret=<your migration secret>' \
--form 'direction=down' \
--header 'Authorization: Bearer <TOKEN>'
Copy

Success Response

Condition : migration was succesfully applied.

Code : 200 OK

Content : message

Error Responses

Condition : URL parameters were invalid

Code : 400

Content : message with details on error
